设备功能特点介绍:

1、吸附式单龙门碰线机设计速度 :70片/分钟，经济速度 :55-60片/分钟。

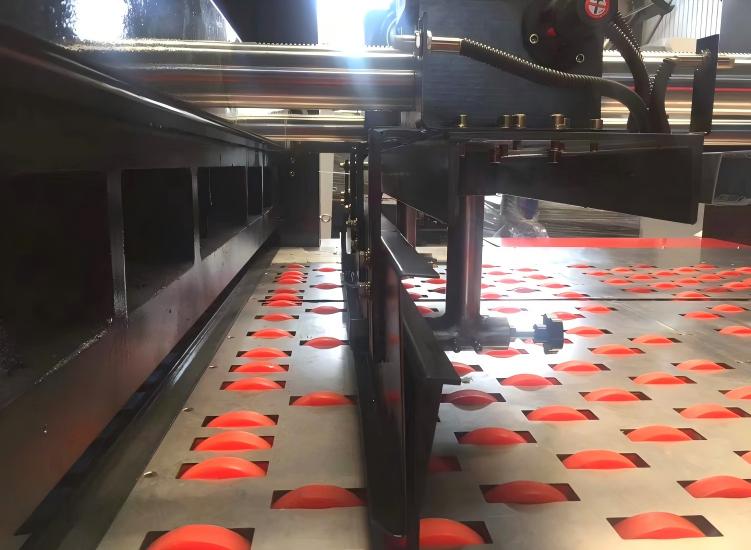

2、全程送纸方式采用免压吸风式送纸技术，送纸准确。
3、箱高与箱盖尺寸采用电动调整 ( 可选配 )。本机所有传动采用纯机械方式，故障率低，解决了弯曲纸板碰底刀、不易过纸的难题。碰线偏心轮利用轴承接触方式，使用寿命长，更换方便快捷且成本低。

Introduction to functional features:

1.The design speed of the equipment :60 pieces 1 minute, economic speed :55-60 pieces/minute.
2.Paper feeding method adopts leading edge suction type paper feeding technology, which makes paper feeding accurate. After the paper feed adopts the upper and lower belt transmission paper feed technology to avoid the shortcomings of the dragon boat to crush the cardboard.
3.Box height and lid size can be manually adjusted, electric adjustment (optional). All the transmission of this machine adopts pure mechanical mode, low failure rate, more attention is to solve the problem of bending cardboard touching the bottom knife, not easy to pass the paper. Line contact eccentric using bearing contact mode, long service life, easy to replace and low cost.

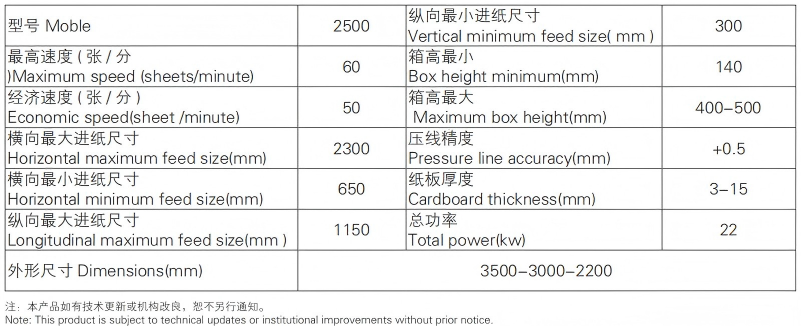

技术参数 TECHNICAL PARAMETER：
